Mastering the Art of Custom CNC Milling Parts Programming and Setup

Understanding Custom CNC Milling Parts

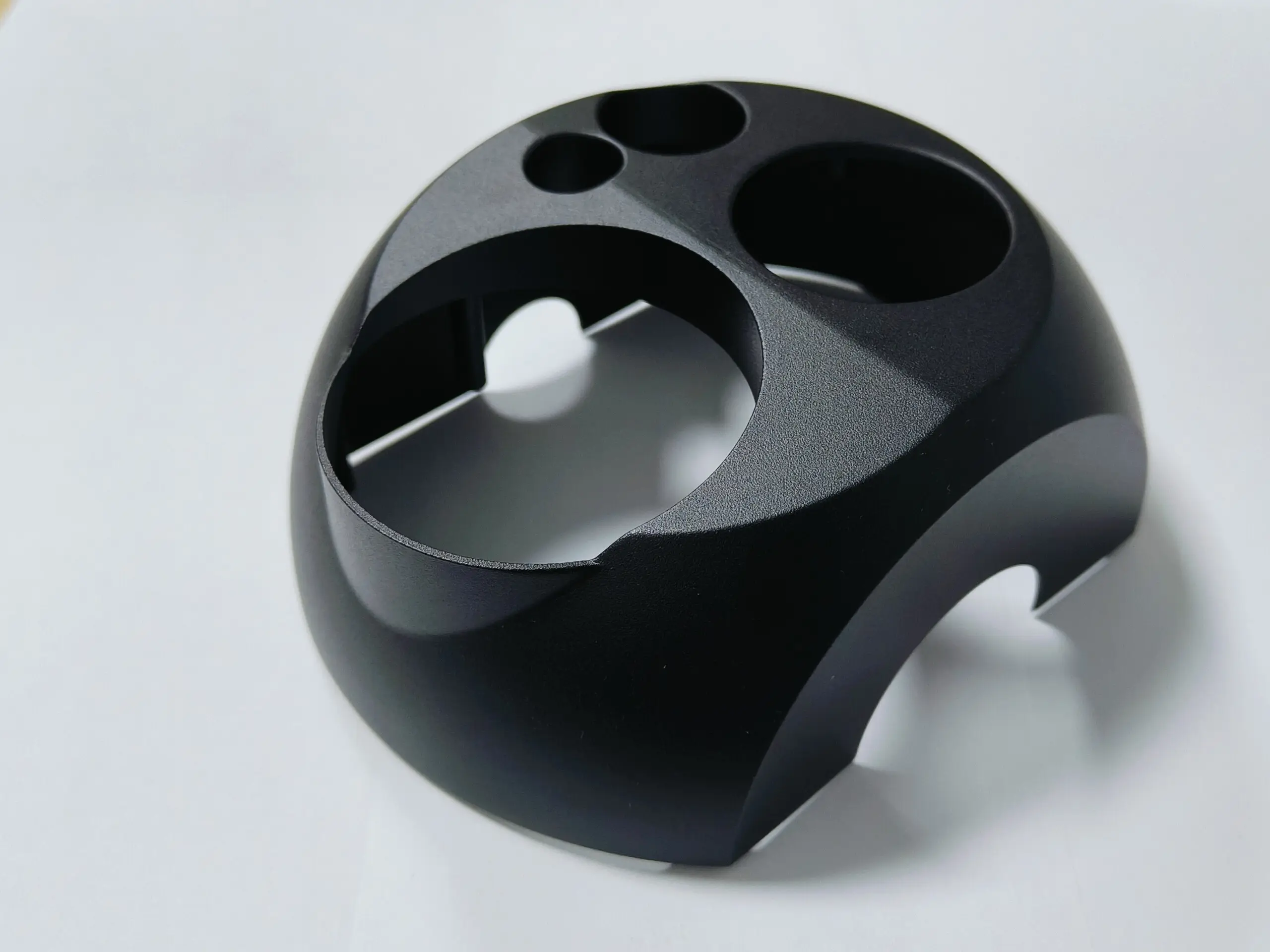

Custom CNC milling parts refer to the specially designed components created using CNC machining technology. These parts are tailored to meet the unique requirements of each project, offering superior performance, durability, and functionality. CNC milling is a highly precise process that relies on intricate programming to guide the cutting tool along the desired paths.
Some common applications of custom CNC milling parts include:
- Aerospace: Precise components for aircraft engines and fuselage structures.
- Automotive: Custom parts for engines, transmissions, and vehicle bodies.
- Medical Devices: Components for prosthetics, implants, and medical machinery.
- Industrial Machinery: Custom parts for conveyors, pumps, and other machinery.
The ability to create custom CNC parts is a testament to the versatility and precision of CNC milling technology.

The Role of CNC Milling Programming in Custom Manufacturing

CNC milling programming is the heart of the custom CNC part production process. It involves translating the design of the part into a series of machine-readable instructions that guide the cutting tool to the correct positions on the workpiece. The quality of the programming directly impacts the final products accuracy, surface finish, and overall performance.

Types of CNC Codes

CNC programming relies on two primary types of codes:
- G-Code: Represents geometric and control functions, such as moving the cutting tool along a path or changing the machines state.
- M-Code: Represents machine-specific functions, such as switching tooling or adjusting machine parameters.
Together, G-Code and M-Code form the foundation of CNC programming, enabling machines to interpret and execute complex machining operations.

Importance of Toolpaths

The toolpath, or the sequence of paths the cutting tool follows, is critical to achieving the desired results in CNC milling. Toolpaths must be carefully designed to ensure that the tool cuts precisely along the intended lines, avoiding over-machining or under-machining.
For example, a toolpath that is too aggressive may result in a part that is either too thin or contains internal voids, compromising its structural integrity. On the other hand, a toolpath that is too conservative may lead to excessive material removal, reducing efficiency and durability.

Examples of CNC Programming Techniques

1. Step-By-Step Programming: Suitable for simple parts, this technique involves programming the machine to move along each straight line or curve sequentially.
2. Canned Cycle Programming: Used for repetitive operations, canned cycles allow the machine to perform a series of programmed movements in a single command, saving time and reducing the risk of human error.
3. Contour Programming: Ideal for free-form parts, contour programming enables the machine to follow complex, organic shapes with ease.
   Mastering these programming techniques ensures that your custom parts are produced with the highest level of precision and repeatability.

Best Practices for CNC Milling Setup and Tool Selection

Setting up a CNC milling machine is a meticulous process that requires careful planning and execution. A well-configured machine setup ensures that the cutting tool operates efficiently, the workpiece is accurately positioned, and the final product meets the required specifications.

Choosing the Right Machining Centers

The choice of machining center is a critical factor in CNC milling setup. A machining center equipped with advanced features such as CNC spindles, rotary tables, and high-speed cooling systems will enhance the accuracy, efficiency, and longevity of the machine.

Selecting Cutting Tools

Cutting tools are the lifeblood of CNC milling, and selecting the right tool for the job is essential. Factors to consider when choosing cutting tools include:
- Tool Type: End mills, drills, face mills, etc.
- Material: Steel, carbide, aluminum-based, or high-speed steel.
- Speed: The rotational speed of the tool, measured in RPM.
- Feed Rate: The speed at which the tool moves along the parts surface.
- Depth of Cut: The amount of material removed in each pass.
Proper tool selection ensures that the cutting operation is performed efficiently, with minimal tool wear and maximal part quality.

Setup and Alignment

Alignment is a critical step in CNC milling setup. A misaligned machine can result in poor part quality, tool wear, and reduced machine life. To ensure precise alignment, use laser alignment tools, precision tables, and specialized clamping fixtures.
Regular monitoring of the machines alignment during setup and operation is also essential. Adjustments may be needed based on real-time feedback from the machines monitoring system or by comparing actual measurements to the designed part.
By adhering to these setup best practices, CNC machinists can maximize the performance of their machines and produce high-quality custom parts.

Advanced Techniques for Optimizing CNC Milling Efficiency

Advanced CNC milling techniques are designed to enhance efficiency, reduce production time, and improve part quality. These techniques leverage cutting-edge technology, innovative programming strategies, and machine optimization tools to push the boundaries of CNC manufacturing.

Optimizing Feed Rates and Speeds

Feed rate and spindle speed are critical parameters that directly impact the efficiency and quality of CNC milling. Overclocking these parameters can lead to faster production but may compromise tool life and surface finish. Conversely, underclocking can result in slower production and increased material removal.
To optimize feed rates and speeds, CNC programmers must consider the material type, part geometry, and machine capabilities. Dynamic compensation, where the machine adjusts feed rates and speeds in real-time based on tool engagement and material hardness, is becoming increasingly popular as a way to maximize efficiency and precision.

Tooling Strategies for Complex Parts

CNC machines are capable of producing highly complex parts with intricate geometries. However, programming these parts requires advanced tooling strategies, such as:
- Multi-Tooling: Using a single tool to perform multiple cutting operations.
- Tool Switching: Quickly changing tools to suit different part geometries.
- Tool Path Generation: Using specialized software to generate toolpaths for complex surfaces.
By employing these advanced tooling strategies, CNC machinists can reduce production time and improve part quality, even for the most challenging custom parts.

Case Studies in CNC Milling Efficiency

Case studies have shown that advanced CNC milling techniques can reduce production time by up to 30%, improve surface finish by 20%, and reduce tool wear by 25%. These improvements are achieved through a combination of optimized programming, advanced tooling strategies, and machine diagnostics.
For example, a machine shop that implemented dynamic compensation for feed rates and speeds reported a 20% reduction in production time while maintaining part quality. Similarly, a manufacturer that switched to multi-tooling strategies reported a 15% increase in productivity.

Handling Complex Geometries and Surface Finishes in CNC Milling

CNC milling is particularly well-suited for producing parts with complex geometries and high surface finish requirements. However, achieving the desired results often requires a combination of advanced programming techniques, specialized tools, and meticulous attention to detail.

Challenges of Complex Geometries

Parts with complex geometries, such as gear blanks, cycloids, and free-form surfaces, can be difficult to machine due to their intricate shapes and tight tolerances. To handle these challenges, CNC programmers must:
- Use advanced tooling strategies, such as multi-tooling and tool switching.
- Program detailed toolpaths that account for the parts geometry.
- Ensure that the machines alignment and feed rates are optimized for the part.

Achieving High Surface Finish

Surface finish is a critical factor in many applications, as it affects both the functionality and aesthetic appeal of the part. Achieving a high surface finish in CNC milling requires:
- Proper tool selection, including end mills with sharp edges and coatings designed to minimize surface roughness.
- Optimizing feed rates and speeds to avoid overspeeding and tool chatter.
- Using post-processing techniques, such as finishing passes with a fine-cutting tool, to smooth out rough edges.
By mastering these techniques, CNC machinists can produce parts with the precision and surface quality required by even the most demanding applications.

Troubleshooting Common Issues in Custom CNC Milling Parts

Challenges and issues arise frequently during CNC milling, and having the right troubleshooting skills is essential for ensuring a successful production process. Common issues include:
- Tool Wear: Caused by improper tool selection, feed rates, or spindle speeds.
- Machine Vibration: Resulting from unbalanced loads, misalignment, or resonance.
- Surface Finish Issues: Due to tool wear, tool geometry, or post-processing problems.
- Delay in Production: Caused by complex tooling strategies, machine setup issues, or operator errors.
To address these issues, CNC machinists must:
- Regularly monitor and maintain machine tool condition.
- Perform diagnostic checks, such as measuring runout and surface finish.
- Use specialized software to analyze toolpaths and machine performance.
- Train operators to follow best practices and recognize signs of potential problems.
By adopting a proactive approach to troubleshooting, CNC machinists can minimize downtime, reduce waste, and produce high-quality parts consistently.

Future Trends and Innovations in Custom CNC Milling

The world of CNC milling is constantly evolving, with new technologies and innovations emerging that are transforming the industry. Future trends and advancements in custom CNC milling include:
- 5-Axis Machining: Enabling the production of complex, multi-axis parts with improved accuracy and efficiency.
- Intelligent Tool Paths: Using AI and machine learning to generate optimized toolpaths based on real-time data.
- High-Speed Machining (HSM): Reducing machining time by up to 50% through advanced spindle technology and high-speed tools.
- Green Machining: Reducing energy consumption and tool wear through optimized machining parameters and machine diagnostics.
These advancements are driving the future of custom CNC milling, enabling manufacturers to produce parts that are faster, more accurate, and more energy-efficient than ever before.

Mastering Custom CNC Milling for Precision and Efficiency

Custom CNC milling is a powerful technology that offers manufacturers the ability to produce high-quality, complex parts with exceptional precision and efficiency. From understanding the fundamentals of CNC milling programming to mastering advanced techniques and troubleshooting common issues, there is no shortage of knowledge and skills required to excel in this field.
By staying updated with industry trends, embracing new technologies, and maintaining a commitment to excellence, CNC machinists can continue to unlock the full potential of custom CNC milling and deliver innovative, high-performance parts to meet the demands of todays demanding manufacturing landscape.
Whether you are a seasoned CNC machinist or a curious hobbyist, the world of custom CNC milling offers endless opportunities for learning and growth. With the right skills, knowledge, and approach, you too can master the art of CNC milling and bring precision and efficiency to your next custom part production project.
